CR300X Enduro
MIURA
CR300X Enduro CR300X Enduro
CR300X Enduro，征服每一条赛道。 CR300X Enduro — ENGINEERED TO WIN.
293 cc
排量Displ.
38.5 kW
最大功率Power
103.5 kg
整备质量Weight
940 mm
座高Seat
向下滚动SCROLL
车型概览MODEL OVERVIEW
CR300X EnduroCR300X Enduro
CR300X Enduro 是 MIURA 面向硬派越野与耐力骑行场景打造的高性能 Enduro 车型。整车围绕轻量化操控、稳定动力输出与复杂地形通过能力开发，适合林道、山地、障碍穿越及赛事训练等使用场景。CR300X Enduro is a high-performance Enduro motorcycle developed by MIURA for demanding off-road and endurance riding scenarios. Built around lightweight handling, stable power delivery, and strong terrain capability, it is designed for trail riding, technical terrain, obstacle sections, and race training.
技术亮点TECHNICAL HIGHLIGHTS
工程重点Engineering Focus
- 01 轻量化车体设定，提升复杂地形下的操控灵活性。Lightweight chassis setup for improved handling in technical terrain.
- 02 300 cc 级动力平台，兼顾低速扭矩与高速延展。300 cc class power platform balancing low-end torque and high-rpm performance.
- 03 Enduro 越野轮组与高通过性设定，适合林道、山地与障碍路况。Enduro wheel setup and high-clearance configuration for trail, mountain, and obstacle riding.
- 04 面向真实骑行场景开发，兼顾训练、赛事与进阶越野使用。Developed for real riding scenarios, from training and racing to advanced off-road use.
技术参数TECHNICAL SPECS
CR300X Enduro 完整参数CR300X Enduro FULL SPECS
发动机ENGINE
9 项9 ITEMS
293CC293CC
实际排量Displacement
发动机型号Model
TS300TS300
汽缸数Engine Type
单气缸Single Cylinder
冲程Stroke
2冲程2-Stroke
冷却系统Cooling System
水冷Water Cooled
气缸×行程Bore × Stroke
72 × 72mm72 × 72mm
压缩比Compression Ratio
13.2:1 ～ 15:113.2:1 ～ 15:1
最高转速Max Engine Speed
11000 r/min11000 r/min
散热Cooling
双风扇Dual Cooling Fans
动力与传动POWERTRAIN
8 项8 ITEMS
38.5KW/52.36hp38.5KW/52.36hp
最大功率Power Max
43.5 N·m43.5 N·m
最大扭矩Torque Max
启动方式Starting Type
纯电启动Electric Start
点火方式Ignition Type
CDICDI

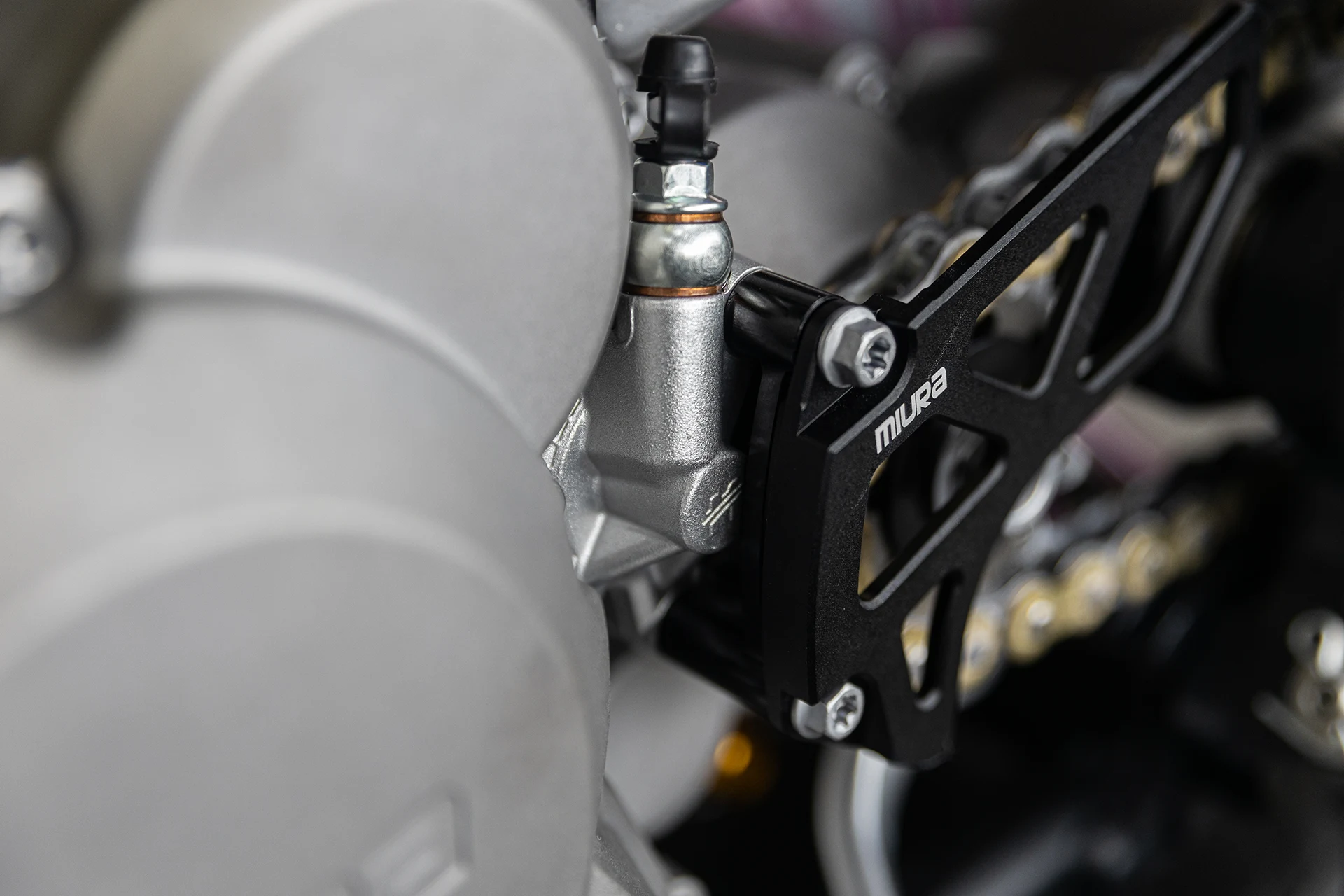

离合方式Clutch
液压离合Hydraulic Clutch
档位Transmission
6档6-Speed
初级传动比Primary Drive
26 : 7226 : 72
二级传动比Secondary Gear Ratio
13 : 5113 : 51
车架与悬挂CHASSIS
7 项7 ITEMS

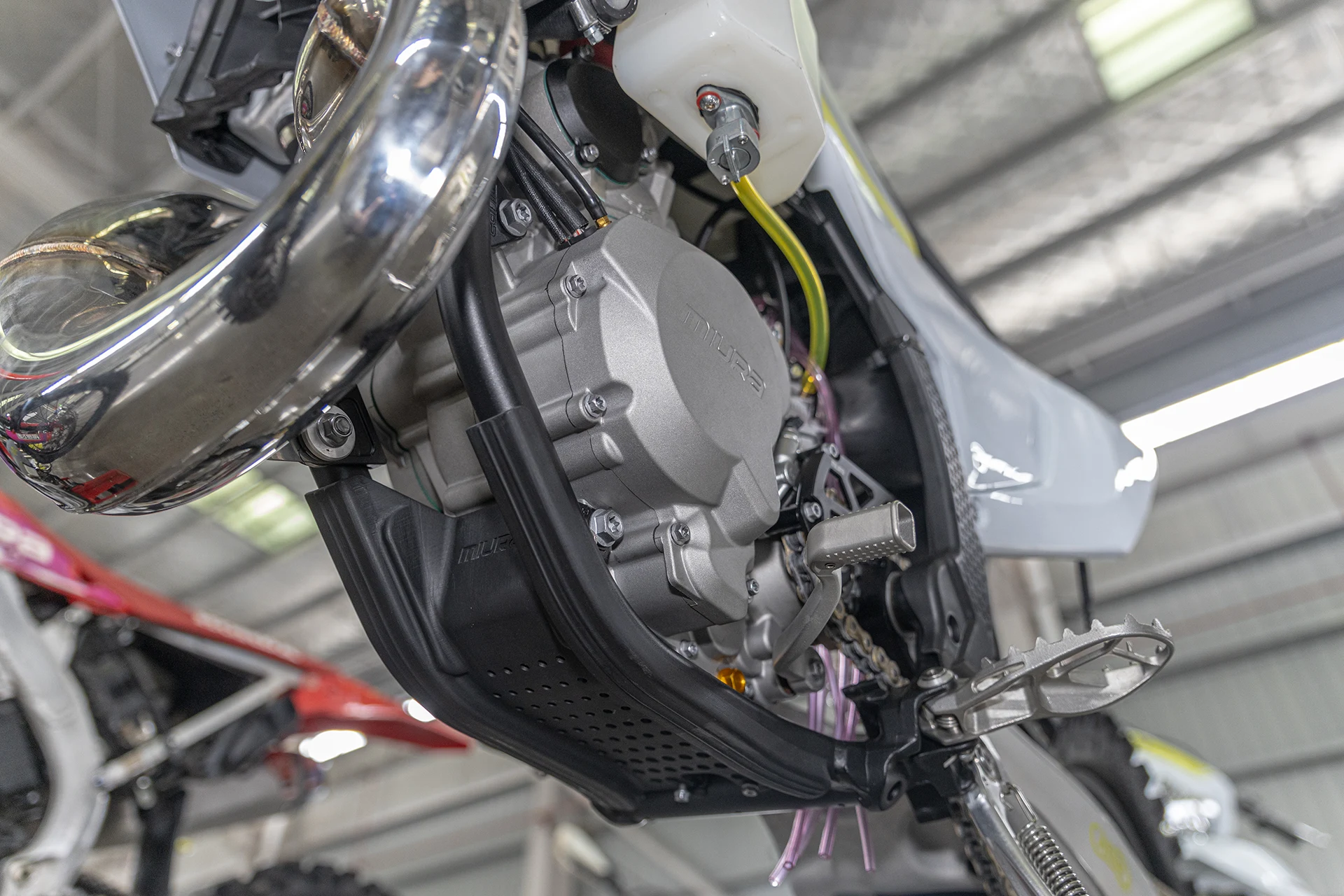

车架类型Frame Type
高强度结构钢（HC900）High Strength Structural Steel (HC900)
前避震Front Suspension Type
HTW Ø48 mmHTW Ø48 mm

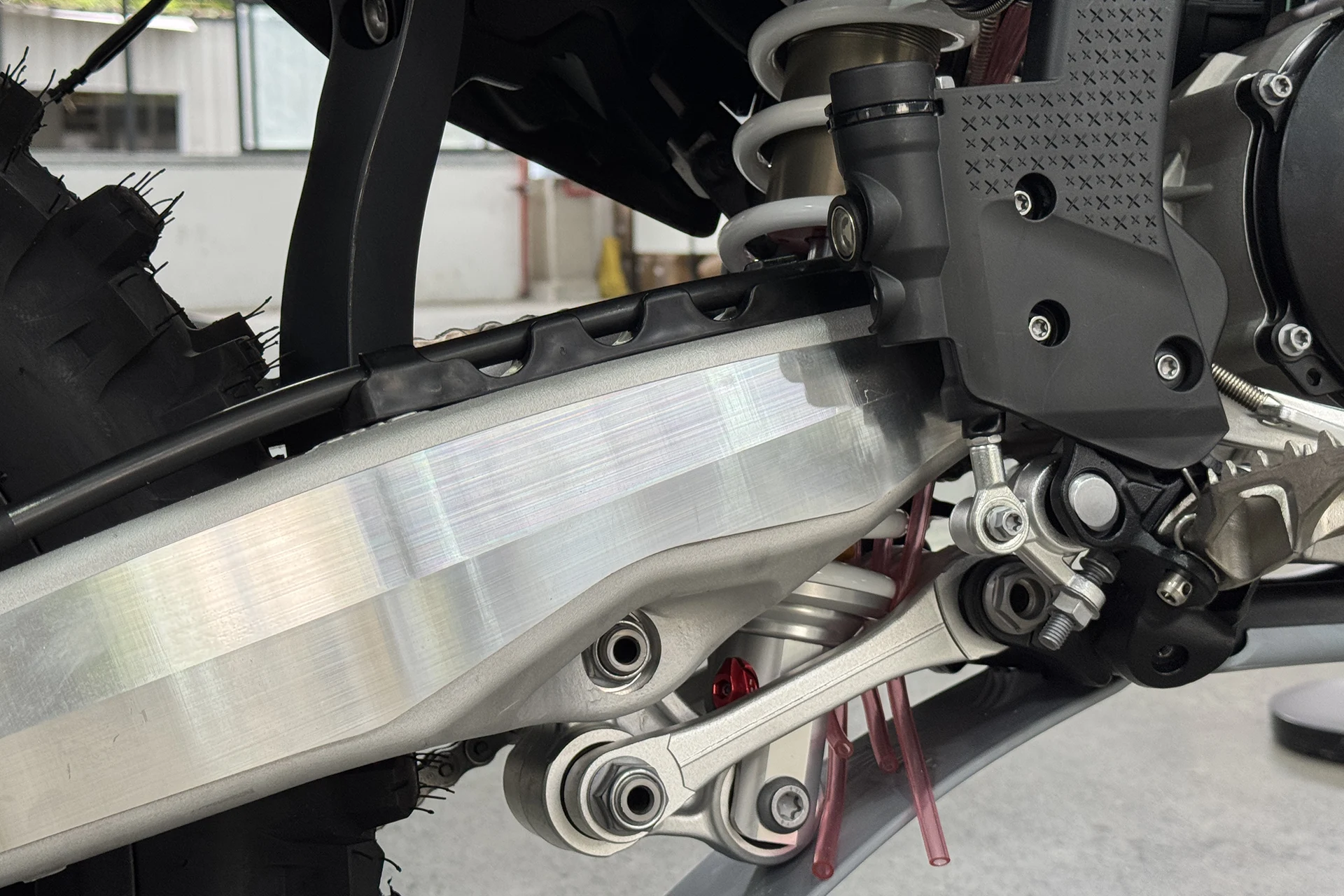

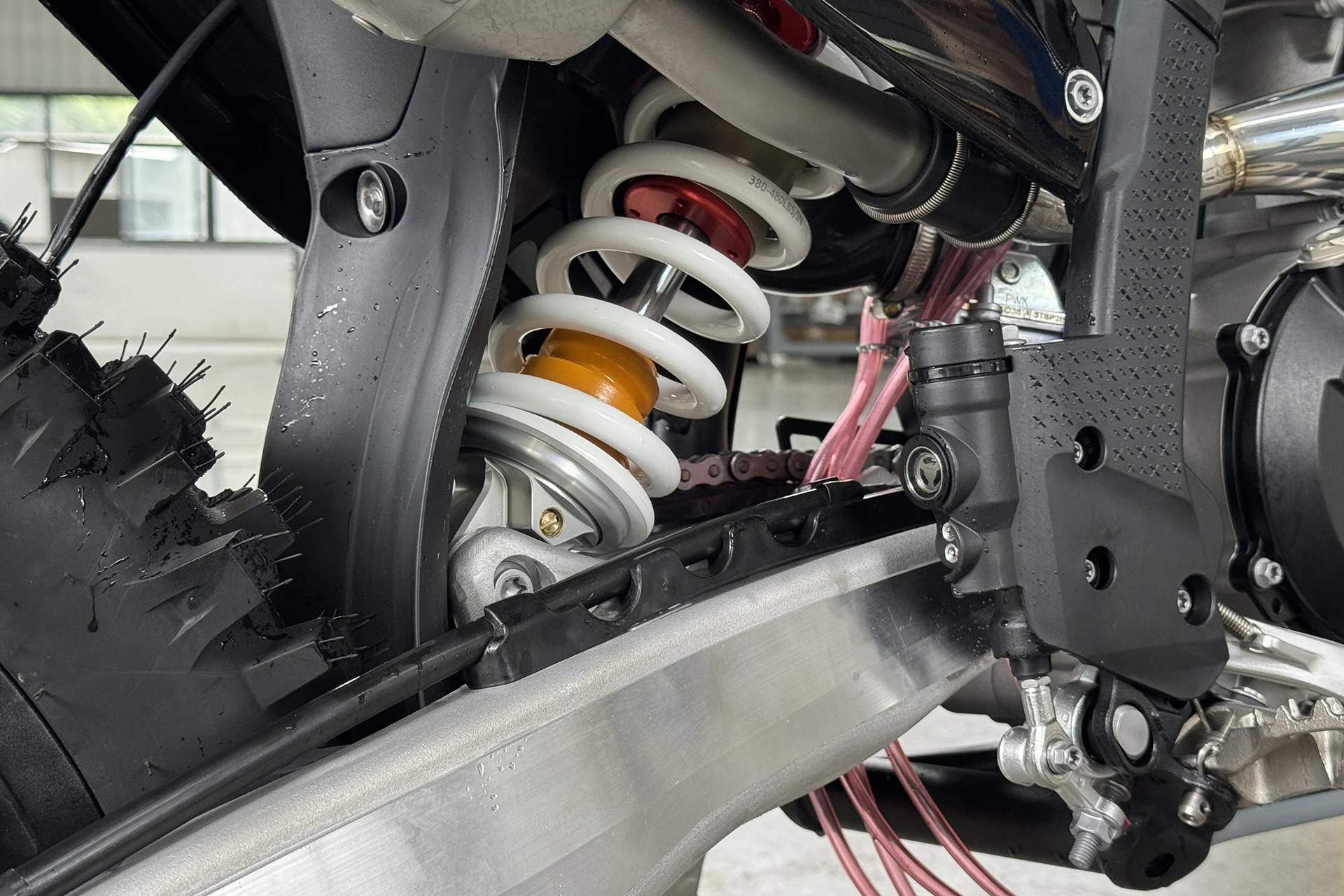

后避震Rear Suspension Type
带PDS的HTW避震器HTW Shock Absorber with PDS
前避震行程Front Suspension Travel
300mm300mm
后避震行程Rear Suspension Travel
300mm300mm
副车架Rear Subframe Type
铝合金+聚酰胺集成Aluminum-Reinforced Polyamide

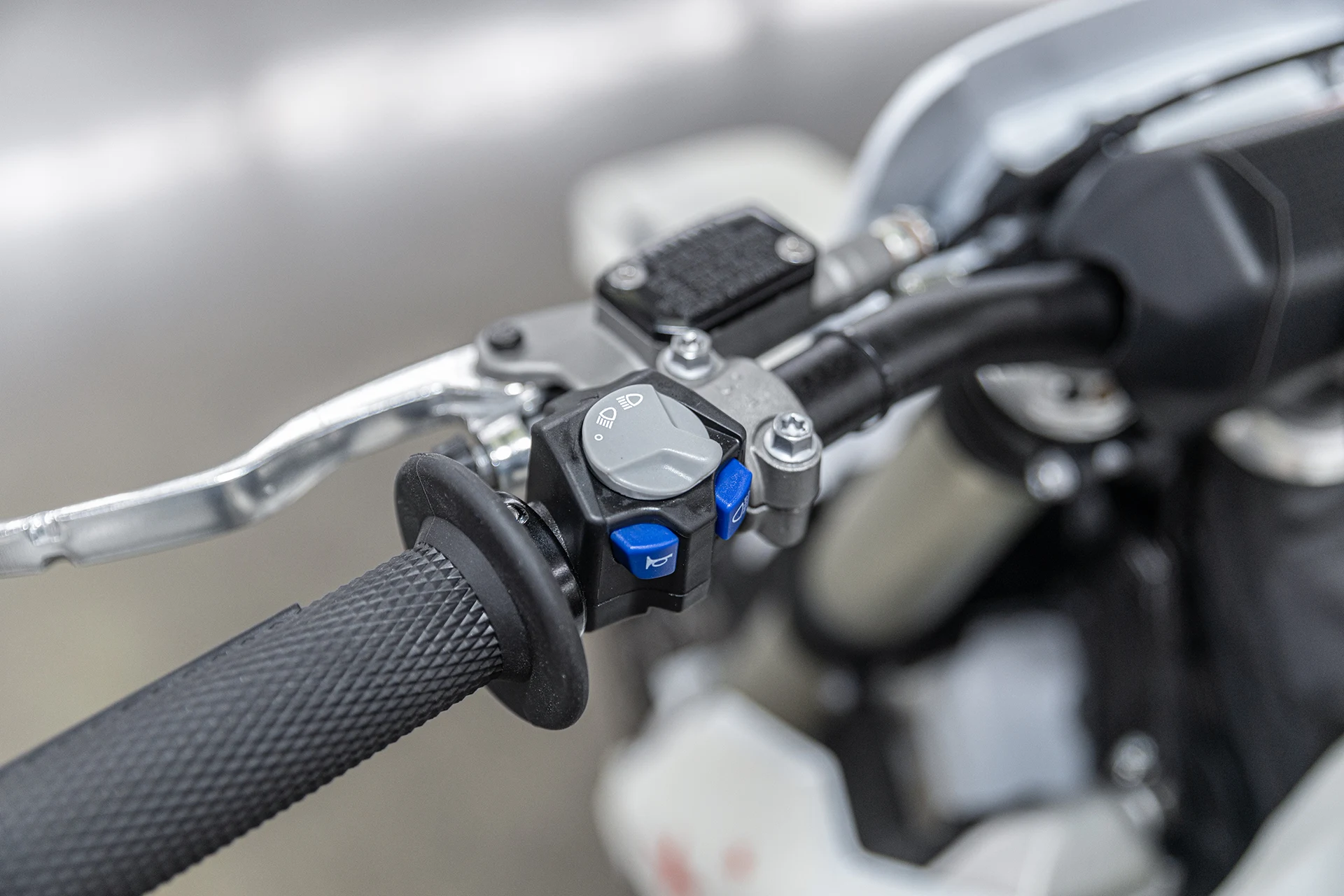

车把Handlebar
IGP 7075IGP 7075
制动与车轮BRAKES & WHEELS
9 项9 ITEMS
轴距Wheelbase(mm)
1470mm1470mm

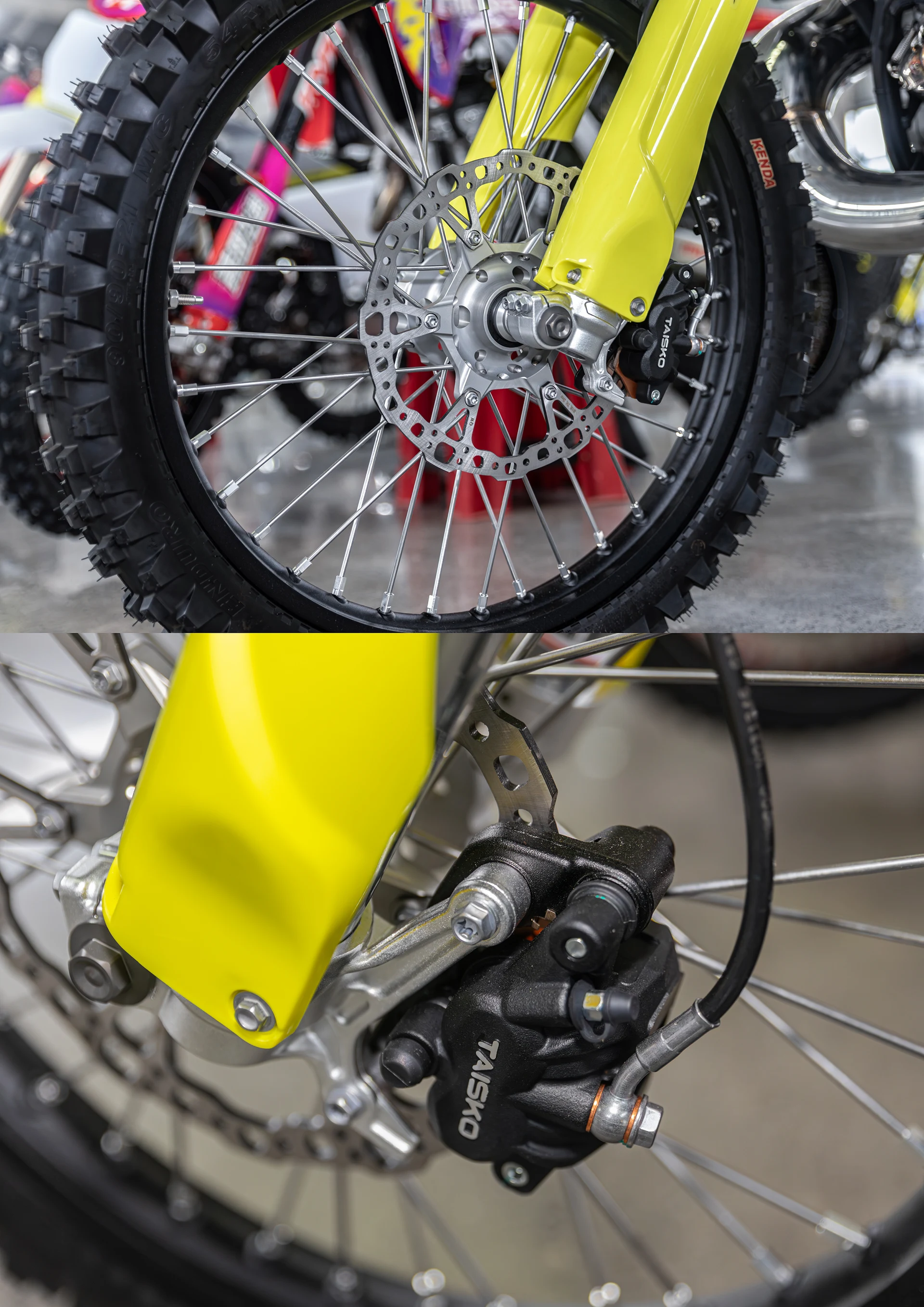

前制动盘直径Front Brake Disc Diameter
260mm260mm
后制动盘直径Rear Brake Disc Diameter
220mm220mm
前制动Front Brake
Taisko First-ClassTaisko First-Class
后制动Rear Brake
Taisko First-ClassTaisko First-Class

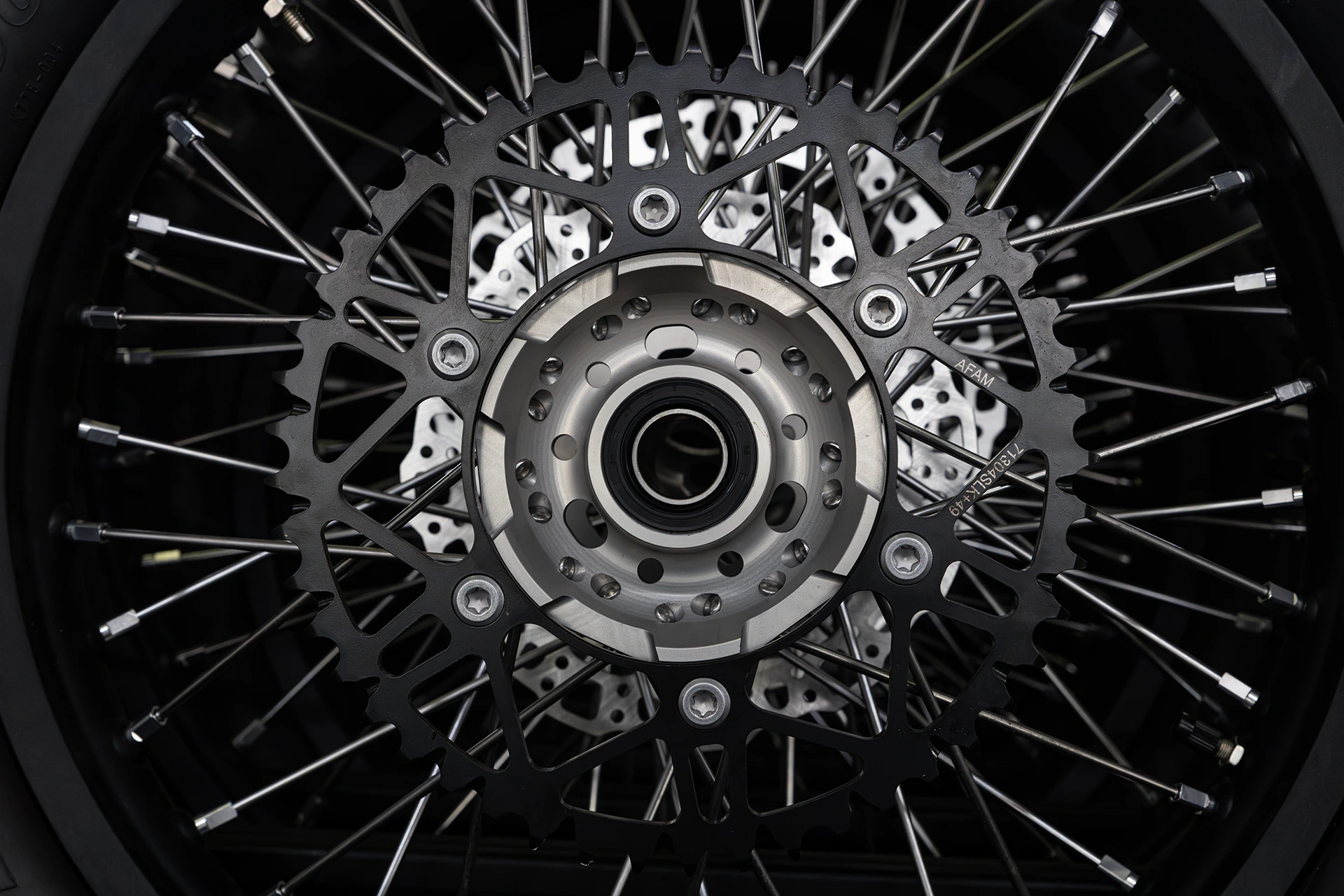

链条 / 链轮Chain / Sprocket
AFAM / RHAFAM / RH

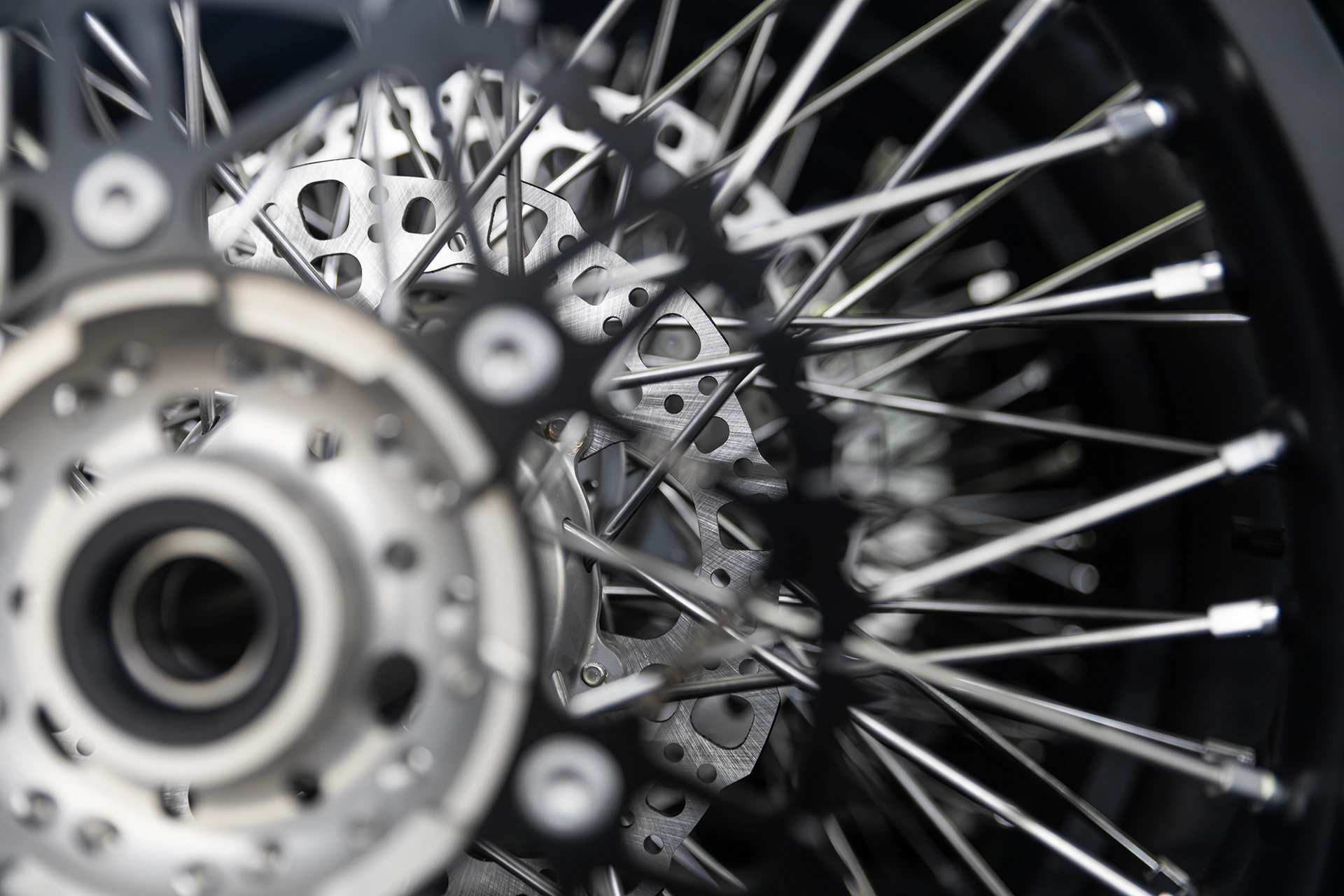

轮圈Wheels
前21x1.60英寸;后18x2.15英寸F21 x1.60in;R18x2.15in
前轮胎Fr. Tire Size
90/90-21 PNEUMAX林道专用胎90/90-21 PNEUMAX
后轮胎Rr. Tire Size
120/90-18 PNEUMAX林道专用胎120/90-18 PNEUMAX
尺寸与容量DIMENSIONS
4 项4 ITEMS
净重Weight (Without Fuel)
103.5kg103.5kg
离地间隙Ground Clearance
375 mm375 mm
座高Seat Height
940 mm940 mm
油箱容积Tank Capacity
约9 LApprox. 9 L
其他参数GENERAL
7 项7 ITEMS
气门Valve
单向阀式进气Reed Valve
平衡轴Balance
平衡轴式Balance Shaft

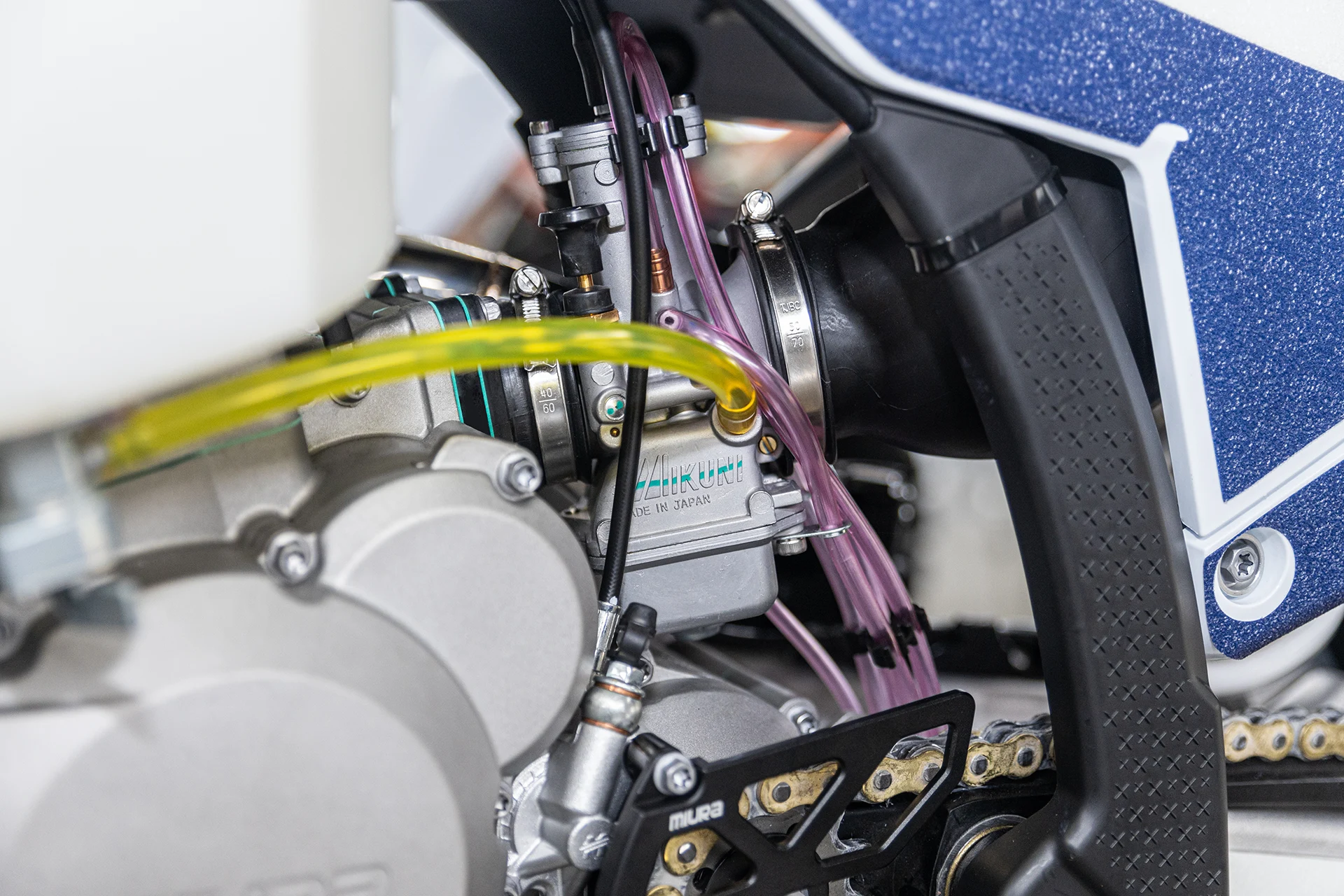

供油系统Fuel Delivery
化油器（PWK38）Carburetor (PWK38)
链条Chain
520520
燃油标号Gasoline Code
95#/98#95#/98#

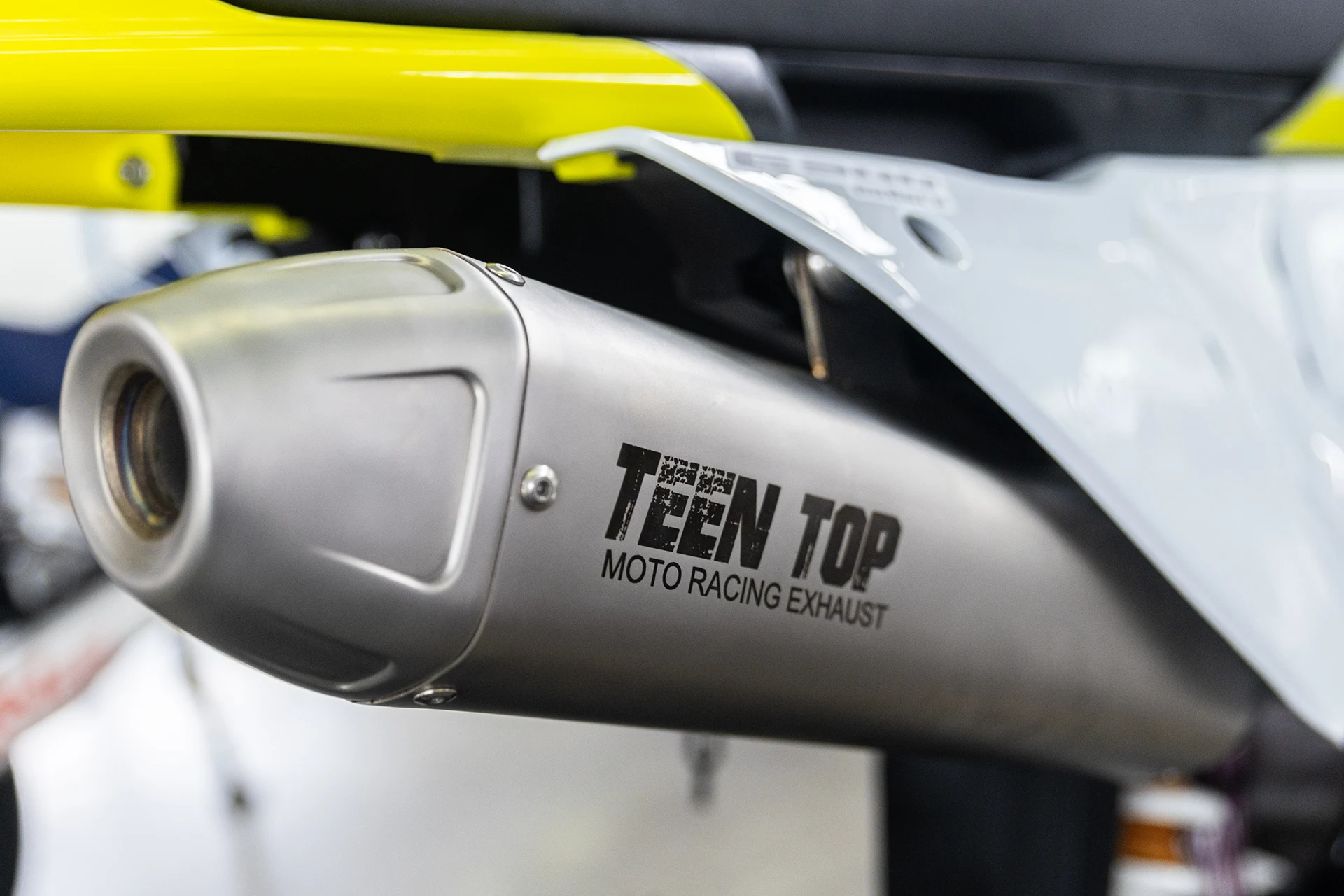

排气Exhaust
不锈钢排气Stainless Steel Exhaust
前伸角Steering Head Angle
26°26°

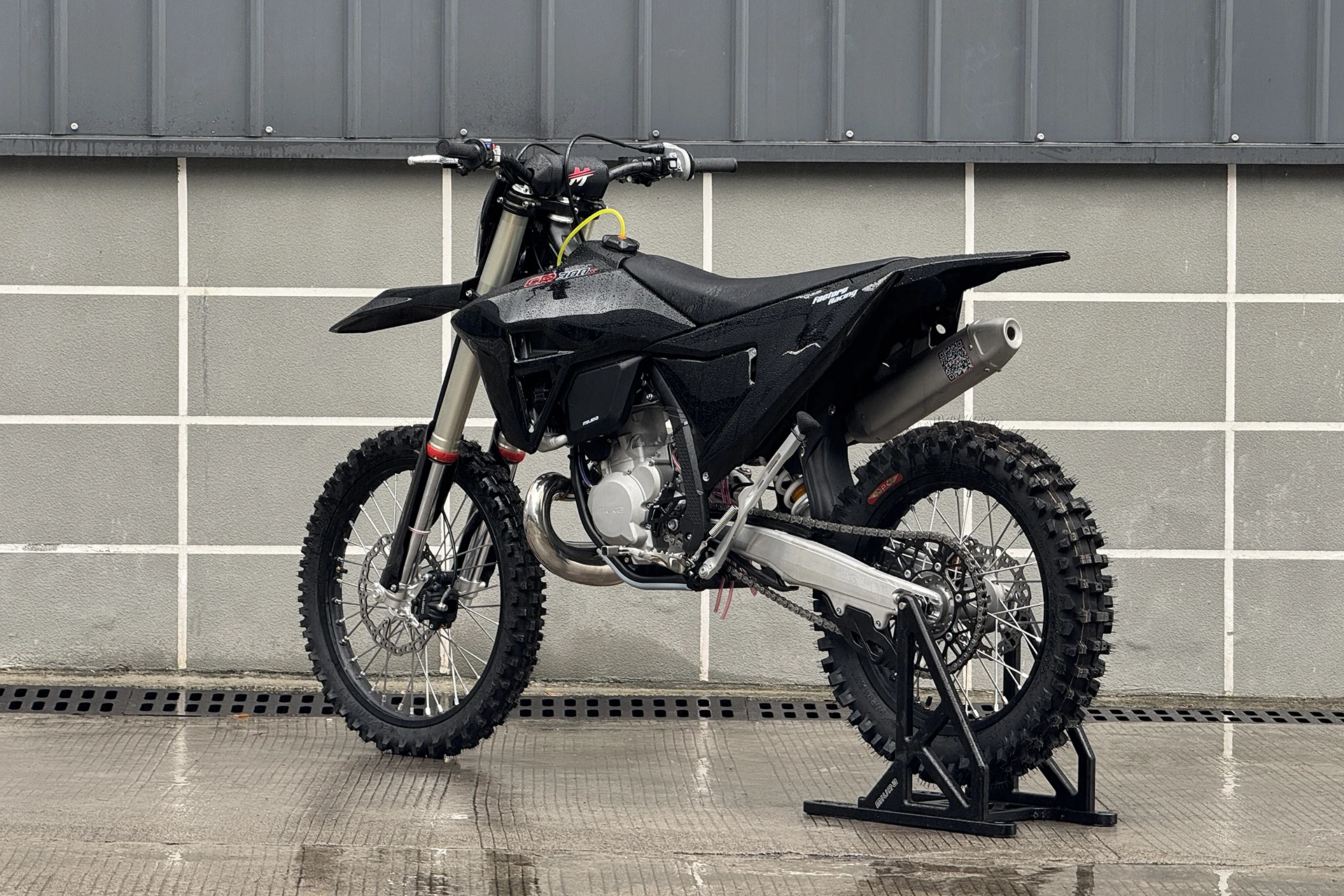

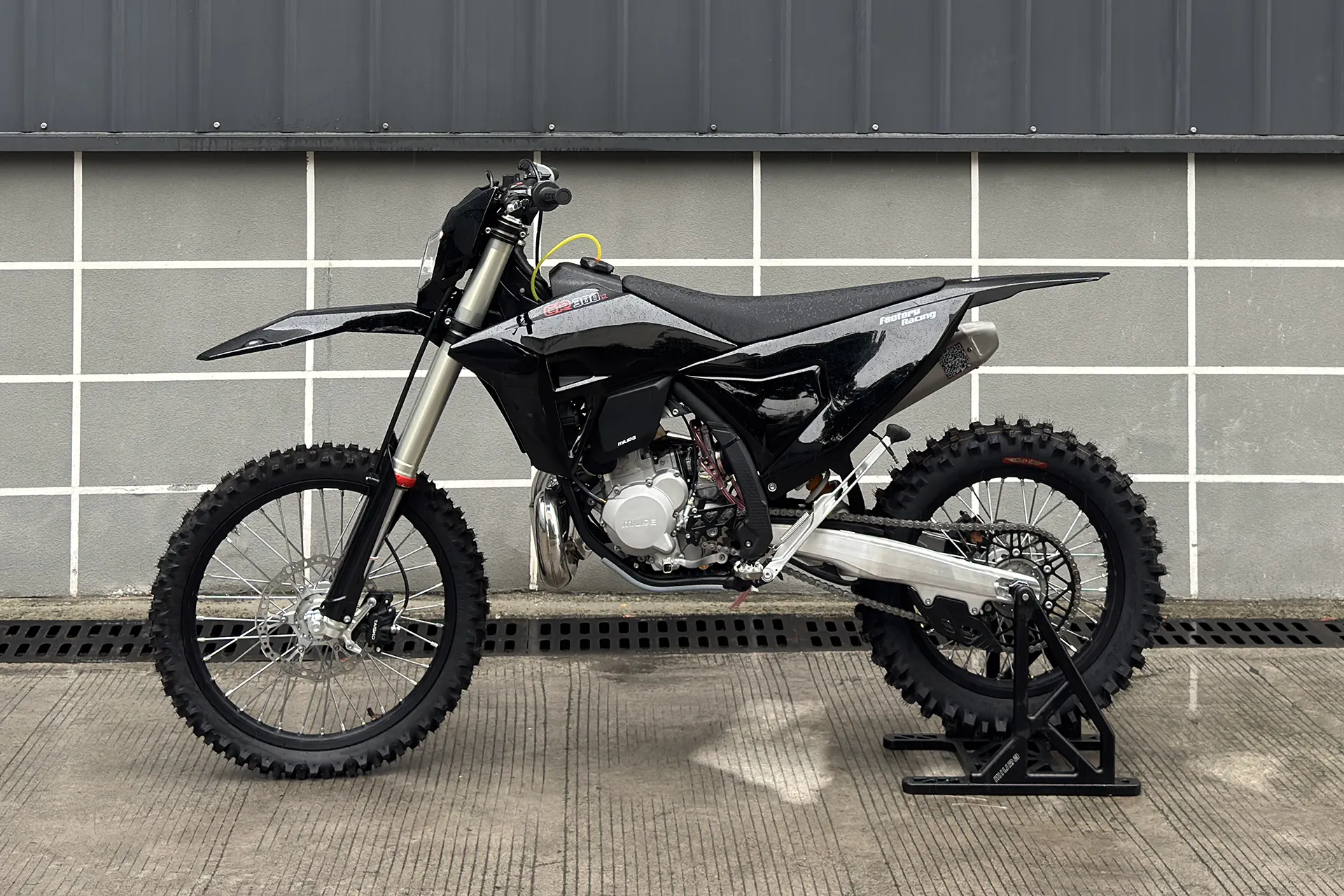

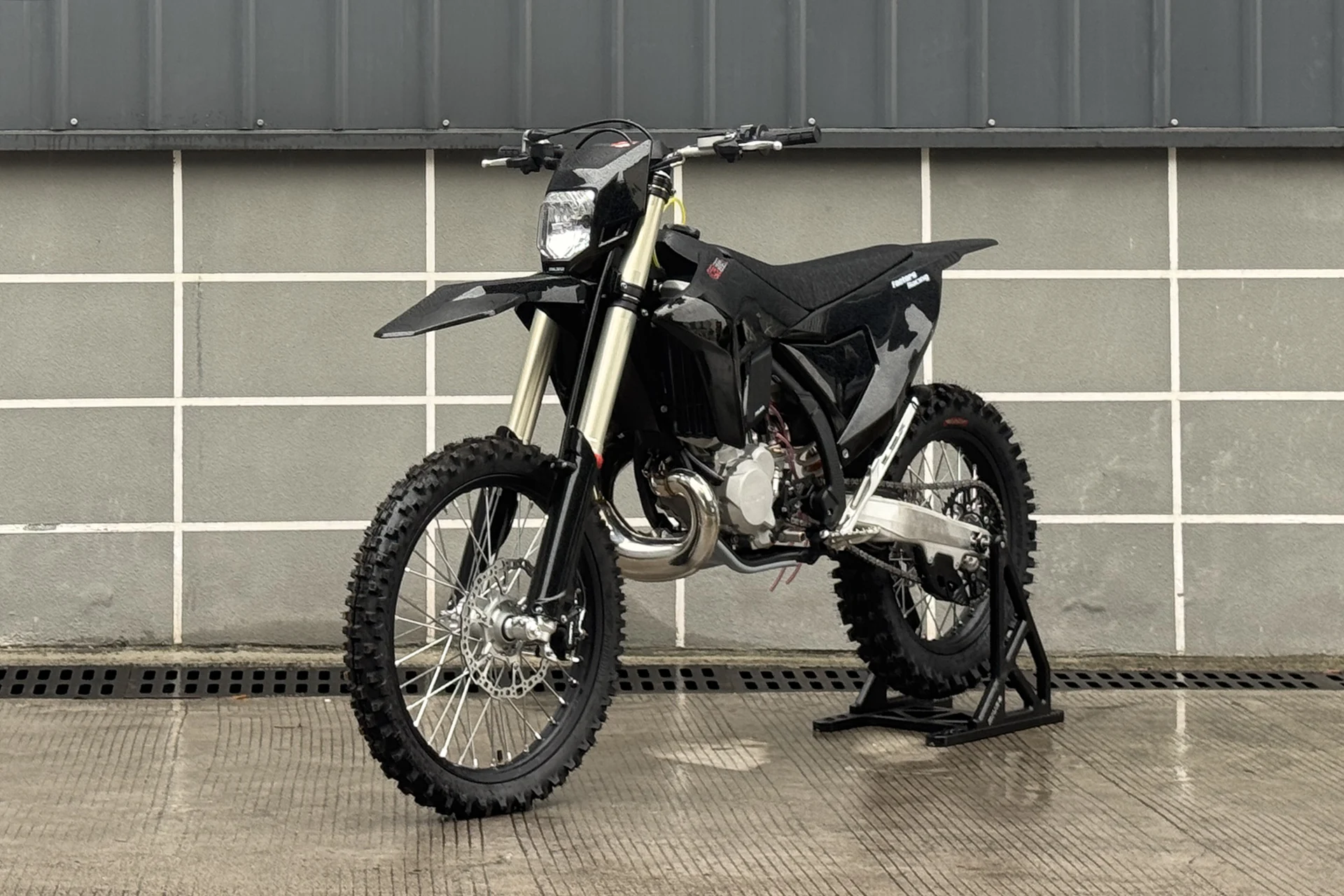

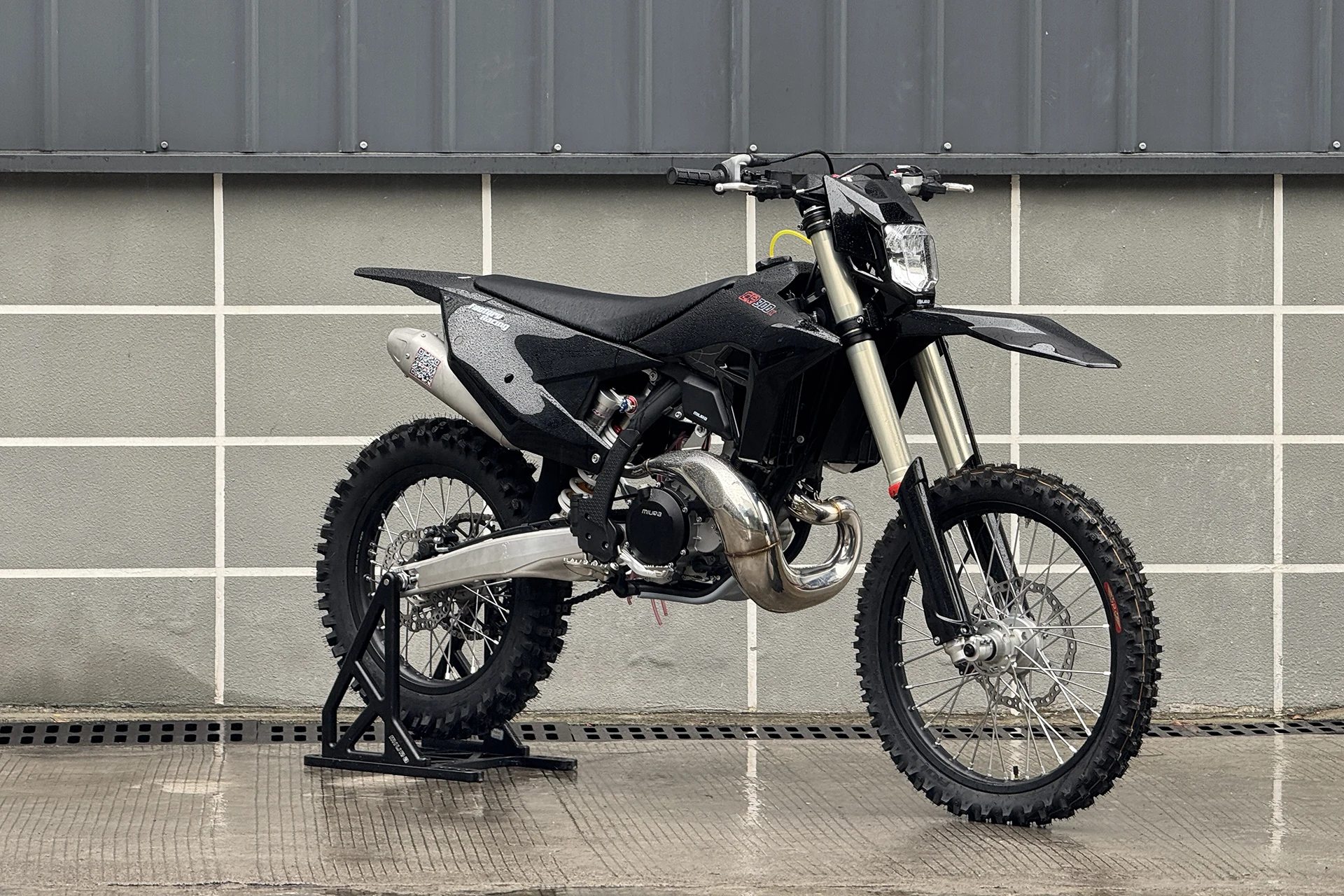

视觉图集VISUAL GALLERY
